Description

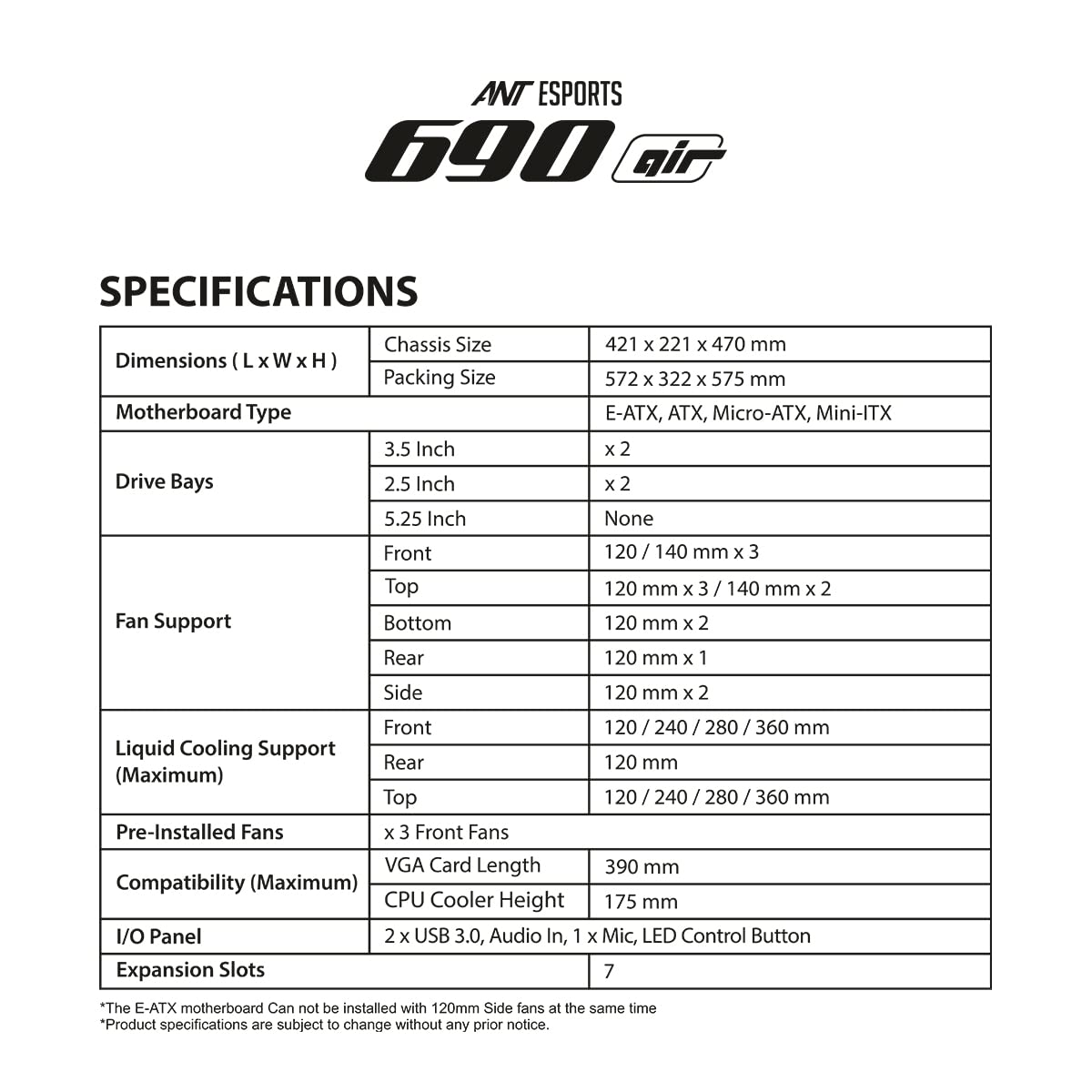

| Ant Esports 690 Air Specifications | |
|---|---|
| Chassis Size | 421 x 221 x 470 mm |
| Packing Size | 572 x 322 x 575 mm |
| Motherboard Type | E-ATX, ATX, Micro-ATX, Mini-ITX |
| Drive Bays | 3.5 Inch x 2 2.5 Inch x 2 5.25 Inch: None |
| Fan Support | Front: 120 / 140 mm x 3 Top: 120 mm x 3 / 140 mm x 2 Bottom: 120 mm x 2 Rear: 120 mm x 1 Side: 120 mm x 2 |
| Liquid Cooling Support (Maximum) | Front: 120 / 240 / 280 / 360 mm Rear: 120 mm Top: 120 / 240 / 280 / 360 mm |
| Pre-Installed Fans | 3 x Front Fans |
| Compatibility (Maximum) | VGA Card Length: 390 mm CPU Cooler Height: 175 mm |
| I/O Panel | 2 x USB 3.0, Audio In, 1 x Mic, LED Control Button |
| Expansion Slots | 7 |
