| Attribute |
Specification |
| Lead time |
Usually in Stock |
| Run time for load |
360 W (Min-max: 36-360 W) |
| Max. Capacity Used |
100 % |
| Main Input Voltage |
230 V |
| Main Output Voltage |
230 V |
| Rated power in W |
360 W |
| Rated power in VA |
600 VA |
| Product or component type |

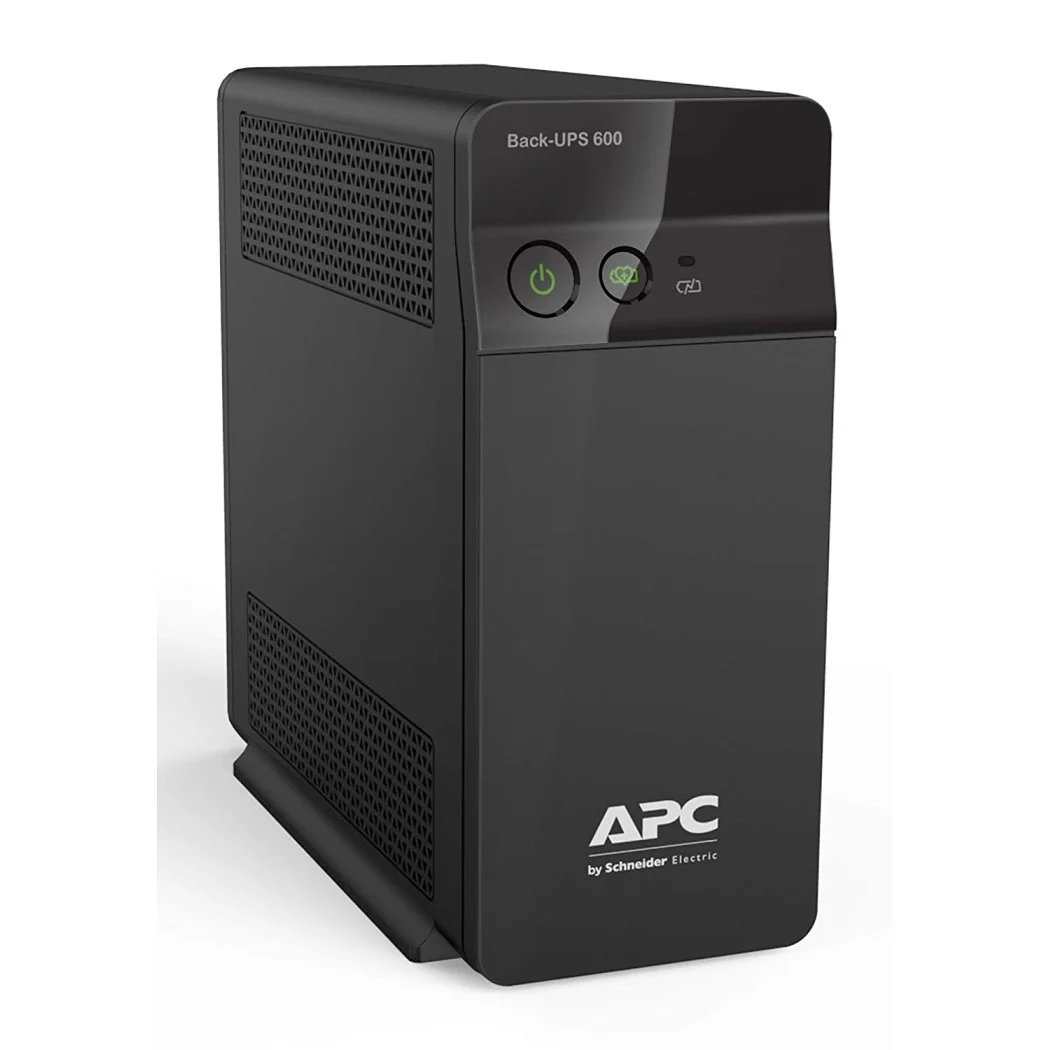

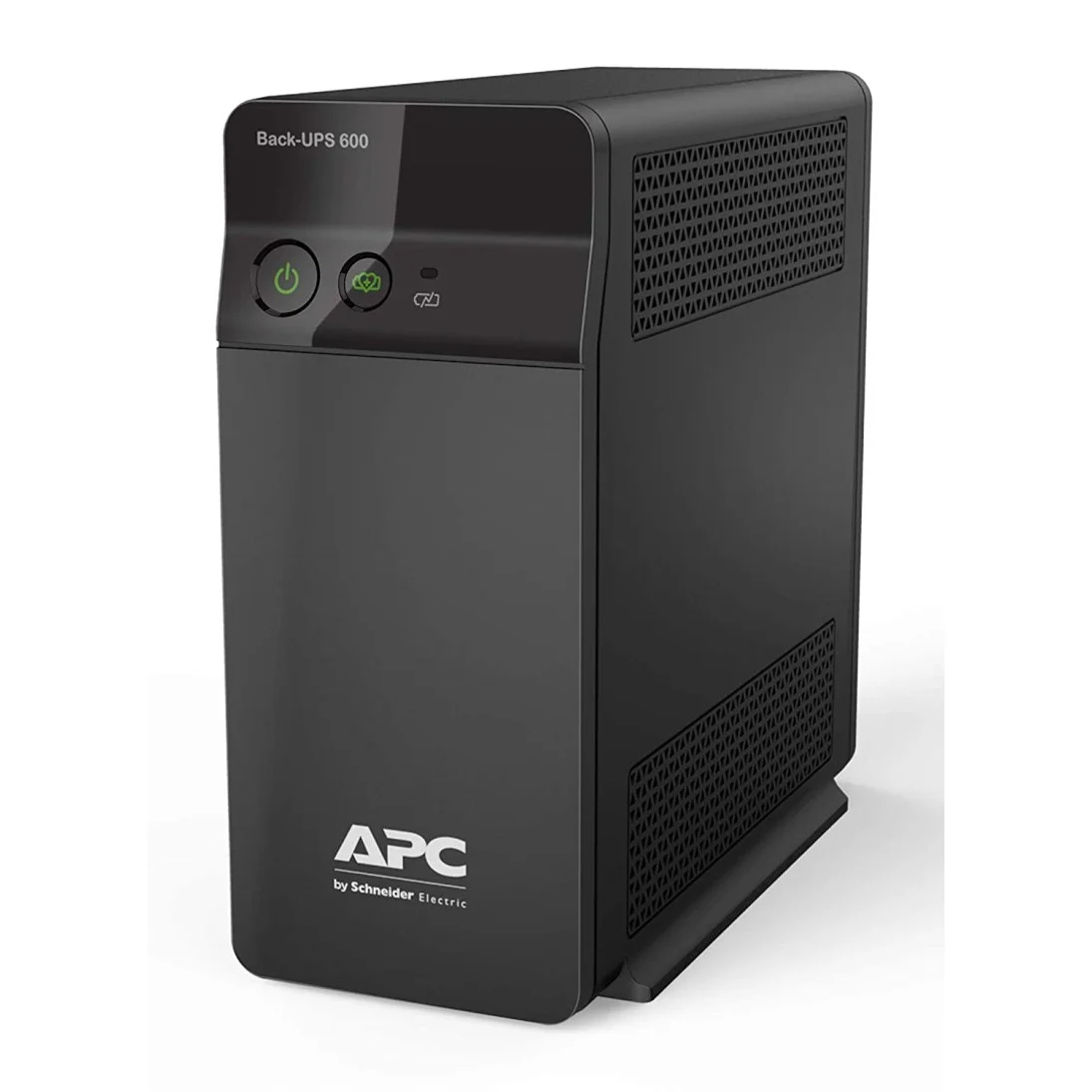

Uninterruptible power supply (UPS) |

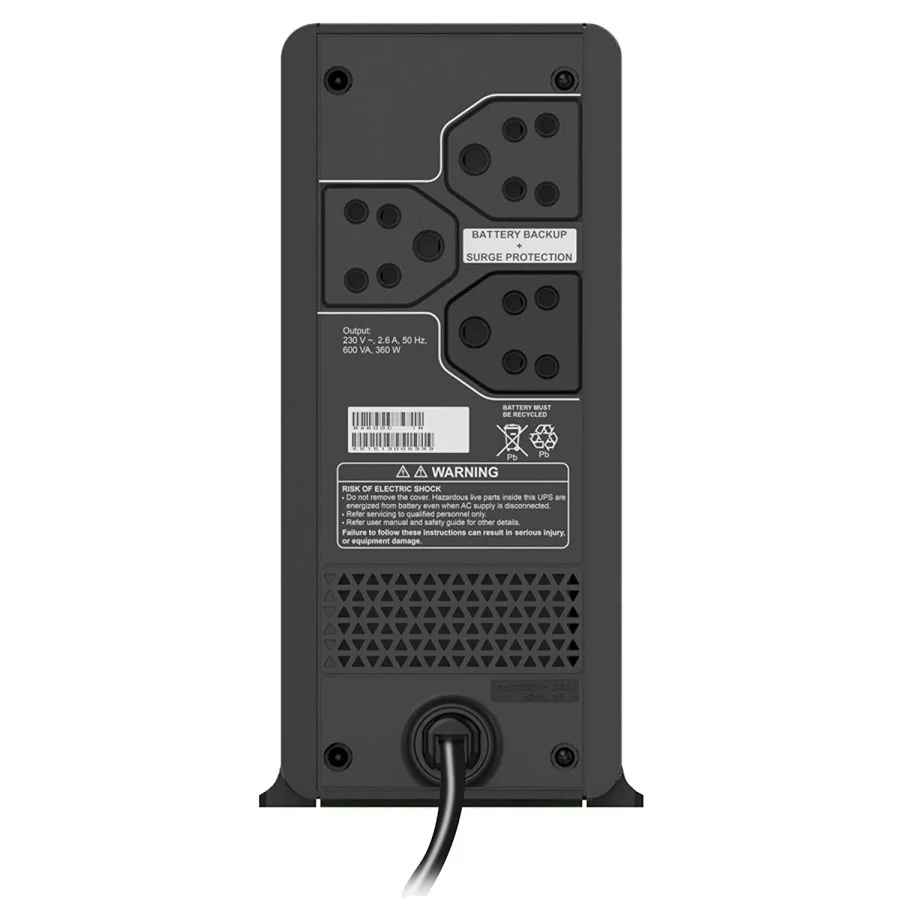

| Output connection type |
3 India 3-pin 6A |
| Cable length |
1.2 m |
| Number of cables |
1 |
| Battery type |
Lead-acid battery |
| Run Time |
View Runtime Graph |
| Number of battery filled slots |
0 |
| Number of battery free slots |
0 |
| Battery recharge time |
6 h |
| Number of battery replacement quantity |
1 |
| Battery voltage |
12 V |
| Battery graph comments |
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Extended runtime |
0 |
| Replacement battery |
RBC2 |
| Provided equipment |
User manual |
| Number of power module free slots |
0 |
| Number of power module filled slots |
0 |
| Redundant |
No |
| Color |
Black |
| Height |
21.8 cm |
| Width |
10.7 cm |
| Depth |
23.7 cm |
| Net weight |
4.7 kg |
| Mounting preference |
No preference |
| Mounting mode |
Not rack-mountable |
| Two post mountable |
0 |
| USB compatible |
No |
| Network frequency |
45…65 Hz auto-sensing |
| Plug standard |
India 3-pin 6A |
| Input voltage limits |
145…290 V |
| Maximum configurable power in W |
360 W |
| Output frequency |
50 Hz sync to mains |
| UPS type |
Line interactive |
| Wave type |
Stepped approximation to a sinewave |
| Full load runtime |
360 W |
| Maximum configurable power in VA |
600 VA |
| Transfer time |
10 ms typical : 12 ms maximum |
| Product certifications |
BIS |
| Ambient air temperature for operation |
0…40 °C |
| Relative humidity |
0…95 % |
| Operating altitude |
0…3000 m |
| Ambient air temperature for storage |
-15…45 °C |
| Storage Relative Humidity |
0…95 % |
| Storage altitude |
0…15000 m |
| Acoustic level |
45 dBA |
| Control panel |
LED status display with on line: on battery: replace battery and building wiring fault |
| Alarm |
Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
| Surge energy rate |
255 J |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
29.5 cm |
| Package 1 Width |
31 cm |
| Package 1 Length |
16.5 cm |
| Package 1 Weight |
5.2 kg |
| Warranty |
2 years repair or replace |
