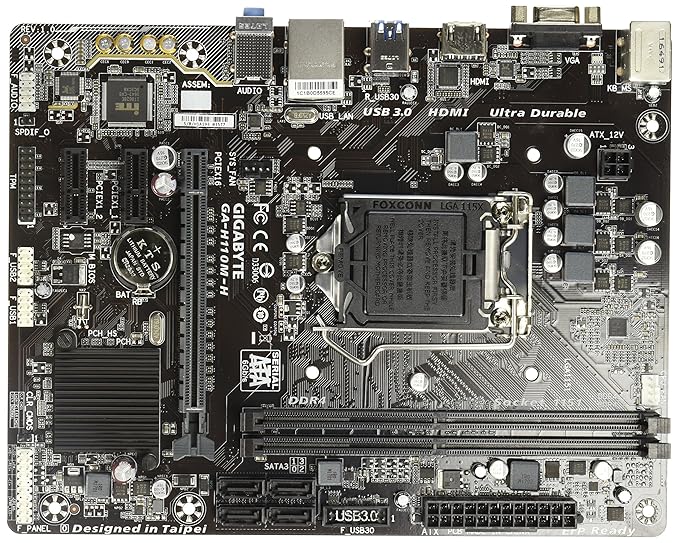

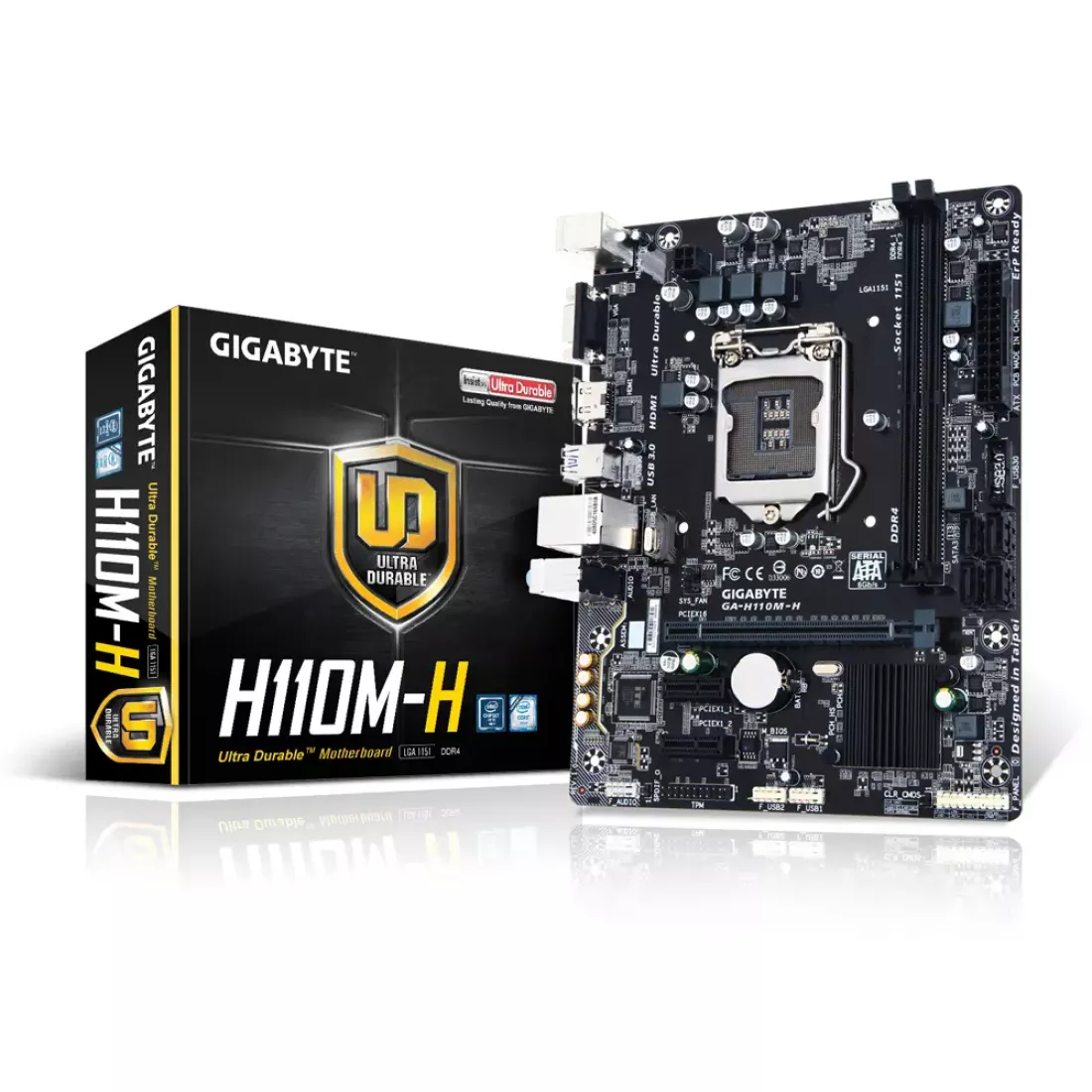

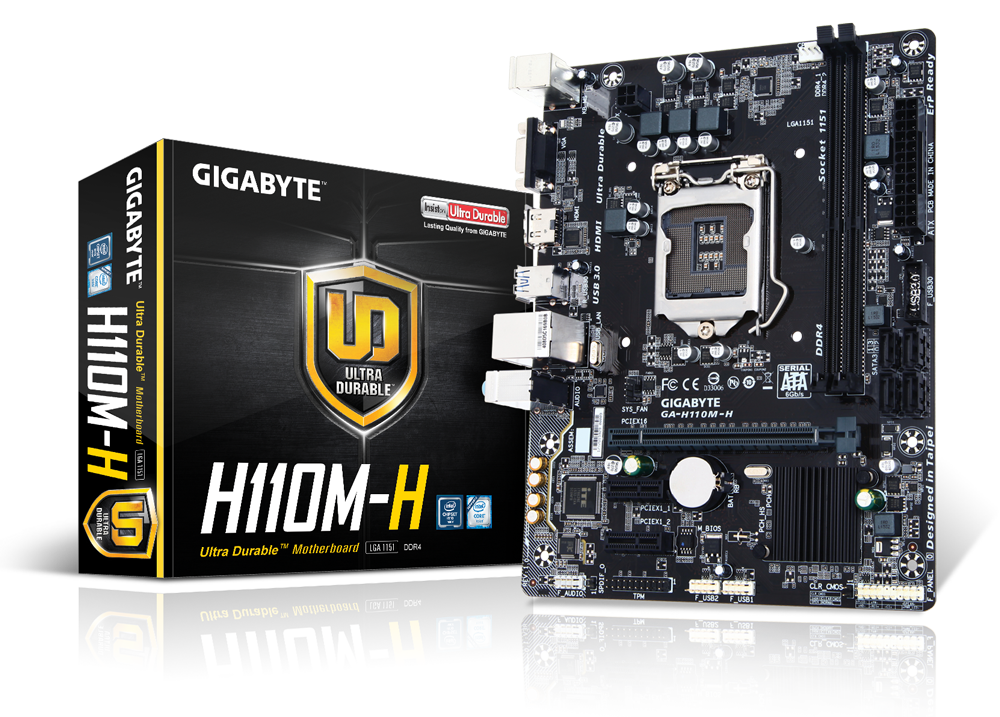

Gigabyte GA H110M H DDR4 Motherboard For Intel 6th | 7th Gen

Gigabyte GA H110M H DDR4 Motherboard For Intel 6th | 7th Gen
Gigabyte GA H110M H DDR4 Motherboard For Intel 6th | 7th Gen - Image 2
Gigabyte GA H110M H DDR4 Motherboard For Intel 6th | 7th Gen - Image 3
Gigabyte GA H110M H DDR4 Motherboard For Intel 6th | 7th Gen - Image 4
Gigabyte GA H110M H DDR4 Motherboard For Intel 6th | 7th Gen - Image 5

Gigabyte GA H110M H DDR4 Motherboard For Intel 6th | 7th Gen

  • Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4, 2 DIMMs
  • Audio Noise Guard with High Quality Audio Capacitors
  • HDMI 1.4, D-sub ports for multiple display
  • Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
  • All new GIGABYTE™ APP Center, simple and easy use
  • Support Intel® Small Business Basics

₹7,990.00

Description



Specification Details
Model Gigabyte GA-H110M-H
CPU Support Intel 6th / 7th Gen Core™ i7/i5/i3, Pentium®, Celeron® Processors
Socket LGA 1151
Chipset Intel H110
Memory Support 2 x DDR4 DIMM slots, up to 32 GB, DDR4 2133 MHz, dual channel
Graphics Interface 1 x HDMI, 1 x D-Sub (Graphics depends on CPU)
Expansion Slots 1 x PCIe x16, 2 x PCIe x1
Storage 1 x M.2 (PCIe x2/SATA), 4 x SATA 6Gb/s
LAN Realtek GbE LAN
Audio Realtek Audio, High Definition, 7.1-channel
USB Ports 4 x USB 3.1 Gen 1, 6 x USB 2.0
Form Factor Micro-ATX

  • Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4, 2 DIMMs
  • Audio Noise Guard with High Quality Audio Capacitors
  • HDMI 1.4, D-sub ports for multiple display
  • Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
  • All new GIGABYTE™ APP Center, simple and easy use
  • Support Intel® Small Business Basics
  • GIGABYTE Ultra Durable ™ Motherboards
    GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
  • High Quality Onboard Audio Design

    Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional users.


    High Quality Audio Capacitors Audio Noise Guard

    The above photos are for reference only.

  • Humidity Protection with Glass Fabric PCB

    There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

  • High ESD Ethernet & USB Port Protection

    GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. With pairing the dedicated protection filters, the Ethernet LAN and USB ports can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

  • High Temperature Protection of Lower RDS(on) MOSFETs Design

    GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

  • Realtek GbE LAN with cFosSpeed Internet Accelerator Software

    Realtek GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to delivery better responsiveness in a crowded LAN environments. Realtek GbE consumes significant less power when it’s in idle state in comparison with others.

  • APP Center

    GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.

    Cloud Station™

    GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

  • USB 3.0 Ports Onboard

    With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.


    * USB 3.0 10x performance is a maximum theoretical value.
    Actual performance may vary by system configuration.
  • 4K Ultra HD Support

    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today’s standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

  • HDMI™ – The Next Generation Multimedia Interface

    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

  • INTEL® SMALL BUSINESS BASICS

    With 6th Generation Intel® Core™ Processor
    Security and Productivity Solution with built in IT
    New compelling usages in one intuitive Customizable UI


* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Intel® H110 Chipset

  • CPU
    1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
      * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
    2. L3 cache varies with CPU

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. Intel® H110 Express Chipset
  • Memory
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR4 2400/2133 MHz memory modules
    4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics
    1. Integrated Graphics Processor – Intel® HD Graphics support:
      1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
      1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
      * Support for HDMI 1.4 version.
    2. Maximum shared memory of 1024 MB
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (1 Gbit/100 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conform to PCI Express 3.0 standard.)
    2. 2 x PCI Express x1 slots
      (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • Storage Interface

    Chipset:

    1. 4 x SATA 6Gb/s connectors
  • USB

    Chipset:

    1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 1 x USB 3.0/2.0 header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x Trusted Platform Module (TPM) header
    12. 1 x Clear CMOS jumper

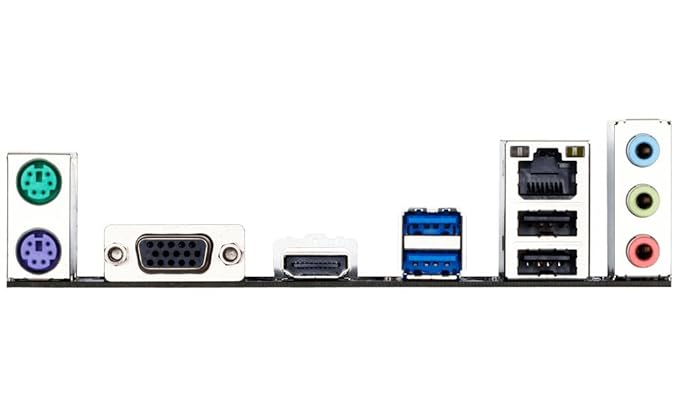

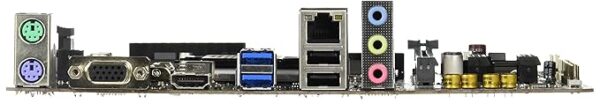

  • Back Panel Connectors
    1. 1 x PS/2 mouse port
    2. 1 x PS/2 Keyboard port
    3. 1 x D-Sub port
    4. 1 x HDMI port
    5. 2 x USB 3.0/2.0 ports
    6. 2 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Smart TimeLock
      Smart Keyboard
      Smart Backup
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Smart Switch
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
    2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
      * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
  • Form Factor
    1. Micro ATX Form Factor; 22.6cm x 17.4cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

  • Driver(+36)
    •  Audio
      Audio
      Version
      Size
      Date
      Download

      Realtek HD Audio Driver

      OS: Windows 8.1 64bit,Windows 8.1 32bit,Windows 7 64bit,Windows 7 32bit,Windows 10 64bit
      [6.0.9088.1]
      308.01 MB
      Mar 12, 2021
      Download
      Realtek HD Audio Driver
      (Note) Win10 ver.20H2 supported.

      OS: Windows 10 64bit
      [6.0.9075.1]
      18.19 MB
      Dec 23, 2020
      Download
      Realtek Audio Driver
      (Note) Win10 ver.1903 supported.

      OS: Windows 10 64bit
      [6.0.8703.1]
      33.38 MB
      Jun 26, 2019
      Download
      Realtek Audio Driver
      (Note) Win10 ver.1809 supported.

      OS: Windows 10 64bit
      [8586]
      30.19 MB
      Dec 19, 2018
      Download

      Realtek HD Audio Driver

      OS: Windows 8.1 64bit,Windows 8.1 32bit,Windows 7 64bit,Windows 7 32bit,Windows 10 64bit
      [6.0.1.7727]
      276.12 MB
      Mar 14, 2016
      Download
    •  Chipset
    •  LAN
    •  SATA RAID/AHCI
    •  USB 3.0
    •  VGA
  • BIOS(+9)
  • Utility(+21)
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
#1. Download speed may be varied in different region. If you have experienced lower download speed, please try other region download sites.
#2. Please download from the region “Asia” if the file you wanted to download does not exist in other region.
#3. If you have encountered problems or cannot find the file after following #2, please feedback to our Technical Service for further help.
#4. For better download quality, it is recommended to use software like Flashget or Getright to monitor your file download status for saving your treasure time and efforts.
